Ejoin SIMPOOL-512: 512 Ports SIM Bank Device – Centralized Control for Multi-Gateway Deployment

$5,400.00 USD
By Ejointech

The ​Ejointech SimBank is a ​remote SIM card management solution designed to ​work seamlessly with Gateway. With this solution, SIM cards are ​centrally managed on the SimBank, while Gateways can be deployed in different locations without requiring local SIM card insertion.

    View details

    What is a SimBank

    SIMBANK is like a "SIM Card Vending Machine" for your SMS/VoIP gateways.

    The Problem It Solves:

    Imagine you have:

    • ​1000 SIM cards (from T-Mobile/Vodafone/EE/etc.)
    • ​10 gateway devices spread across different locations

    Without SIMBANK:
    🔧 You'd manually insert SIM cards into each gateway
    🔧 Need to change cards? Physically swap them one by one → ​HUGE hassle!

    With SIMBANK:

    1. ​All SIM cards live permanently in the SIMBANK (like a "card hotel")
    2. ​Gateways borrow SIMs remotely → no physical swapping needed
    3. ​Smart rotation:
    • Gateway 1 needs a SIM? Automatically checks one out
    • Done sending? Returns SIM to pool for others to use

    Real-World Example 🌰:

    Before:
    Your team spends hours inserting 1000 SIM cards into 10 SMS gateways... then repeats tomorrow.

    With SIMBANK:

    • All 1000 SIMs stay safe in the SIMBANK
    • 10 gateways auto-draw SIMs as needed
    • Zero manual work → ​100% Proceed via Cloud

    Key Benefits:

    ✔ ​No more SIM card juggling (save 90% time)
    ✔ ​Central control (manage all SIMs from one dashboard)
    ✔ ​Scale effortlessly (add more SIMs/gateways anytime)

    Tech-Free Summary:

    "It's like Netflix for SIM cards – your gateways 'stream' SIMs on demand!"

    (Need it simpler? Think of SIMBANK as the "brain" that feeds SIMs to your gateway "workers.")

    Product Overview

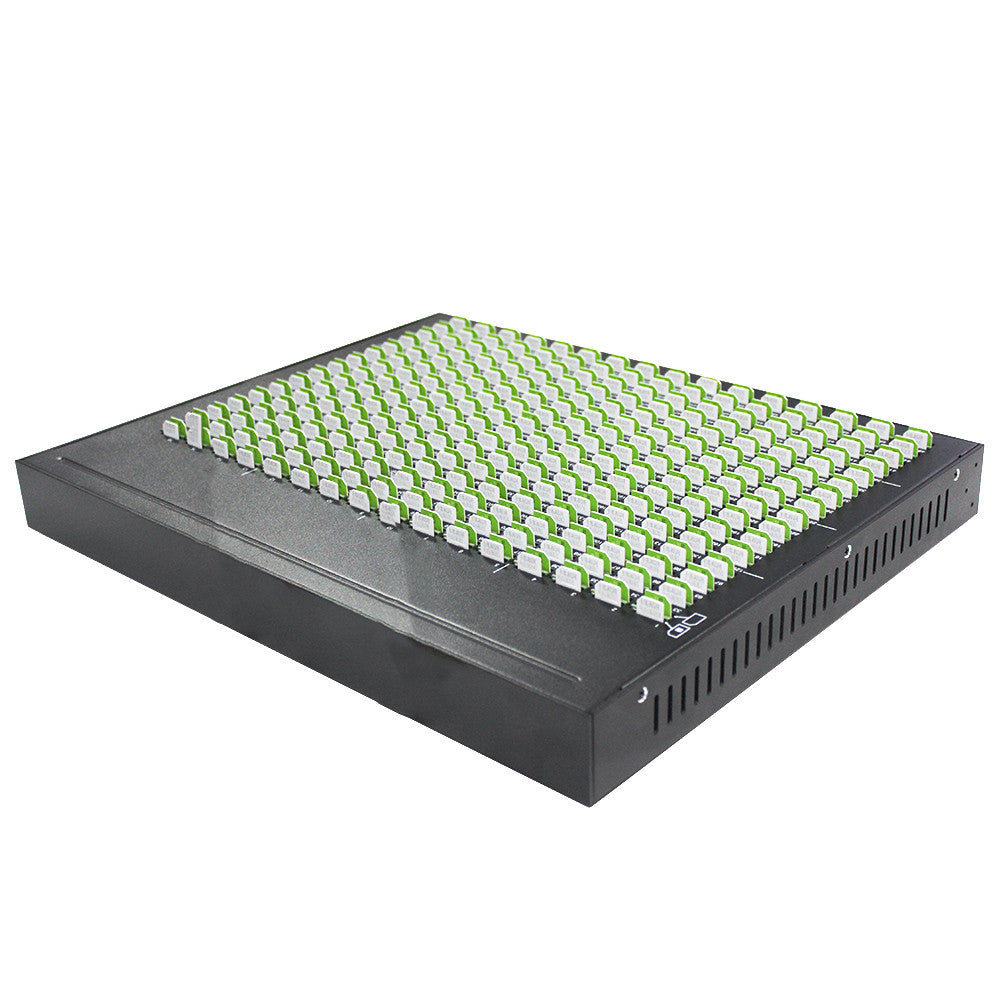

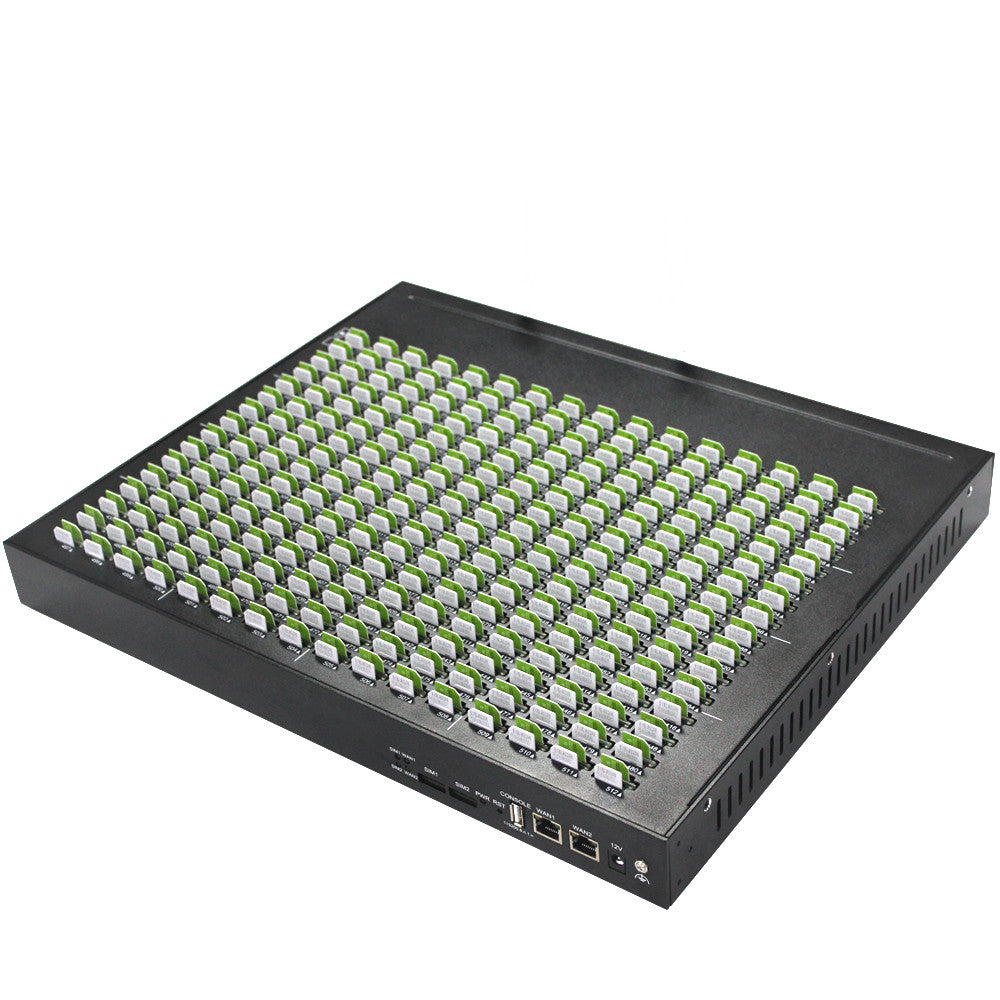

    The ​SIMBank 512 is a powerful device designed to simplify SIM card management across multiple gateways. With ​512 ports, it supports up to ​512 SIM cards, which can be ​freely allocated to 512 ports on gateway via the ​Cloud Server ESPS (SIMBank System). This allows you to ​centrally manage SIM cards on the SIMBank while deploying ​Gateways in different locations without the need for local SIM card insertion.

    Important Note:The ​SIMBank 512 must work together with Ejoin Gateway devices and cannot operate independently.

    the ultimate solution for remote SIM card management!

    High Capacity – 512 ports for 512 concurrent connections.

    Centralized Management –SIM cards are managed on the SIMPOOL device, simplifying operations.

    Flexible Deployment – Gateways can be deployed in multiple locations without SIM card limitations.

    How it works:

    1. ​SIMBank 512 – Insert and manage up to 512 SIM cards on the SIMBank device(e.g., SIMPOOL-1 and SIMPOOL-2).
    2. Cloud Server ESPS – The ​Cloud Server ESPS (SIMBank System) connects the SIMBank with the Gateways, enabling ​cloud-based SIM card allocation.Ejoin will install ESPS on your VPS server .
    3. ​Flexible SIM Allocation – Use the ESPS software to ​dynamically assign SIM cards from the SIMBank to any Gateway port based on demand.
    4. ​Gateway Deployment – Deploy Gateways in multiple locations (e.g., Gateway Location 1, 2, 3) without inserting SIM cards locally.

    kEY FEATURES

    • Manage all 512 SIM cards from one location
    • Cost Efficiency: No need for on-site SIM card switching or recharging, saving on technician and travel costs
    • Flexible allocation of SlM cards
    • Human behavior to protect SlMs from being bocked
    • Real-time monitoring statistics of all SlMs and gateways
    • DDNS Service: Includes DDNS service to support dynamic public IP.
    • Support multiple SIMBANK working together
    • Strong performance statistics, instant, reflect business operation state, and monitor the adjustment
    • Hot swappable SlM Cards
    • Support VPN
    GET DEMO

    Effortless SIM Management and Control

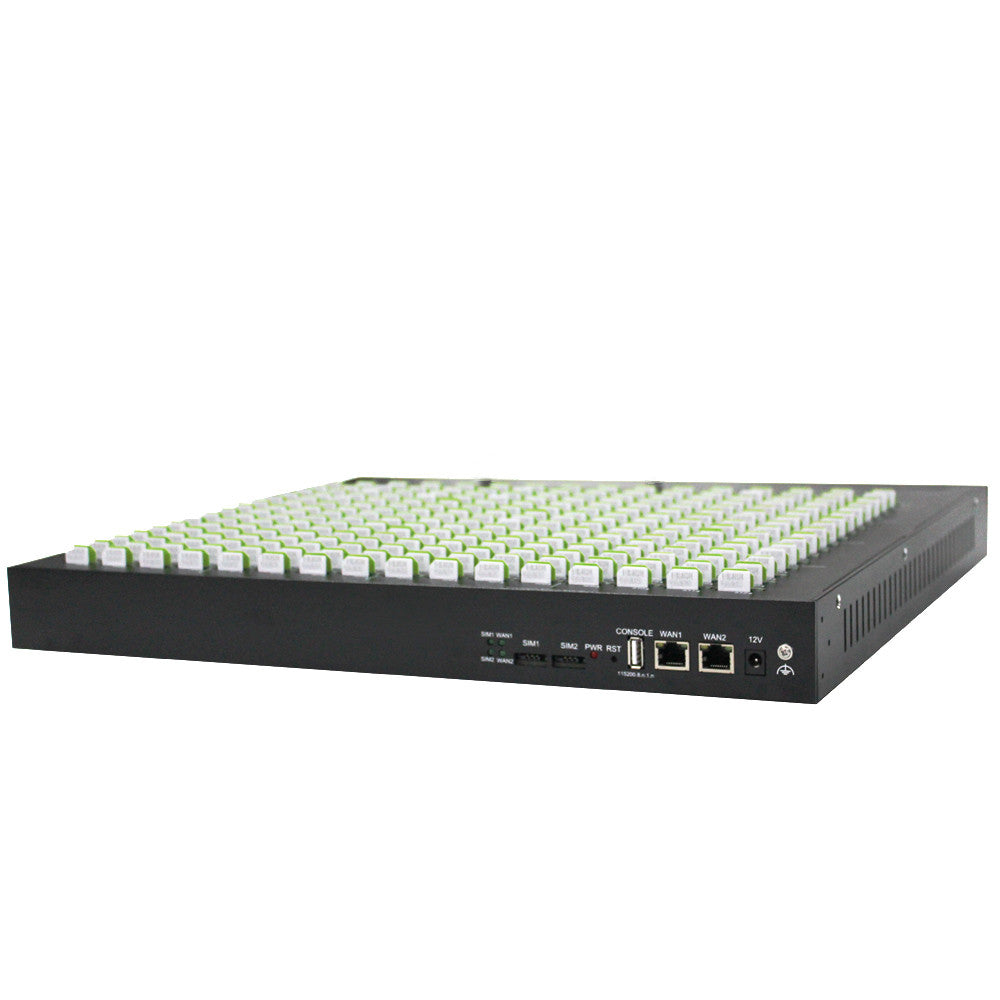

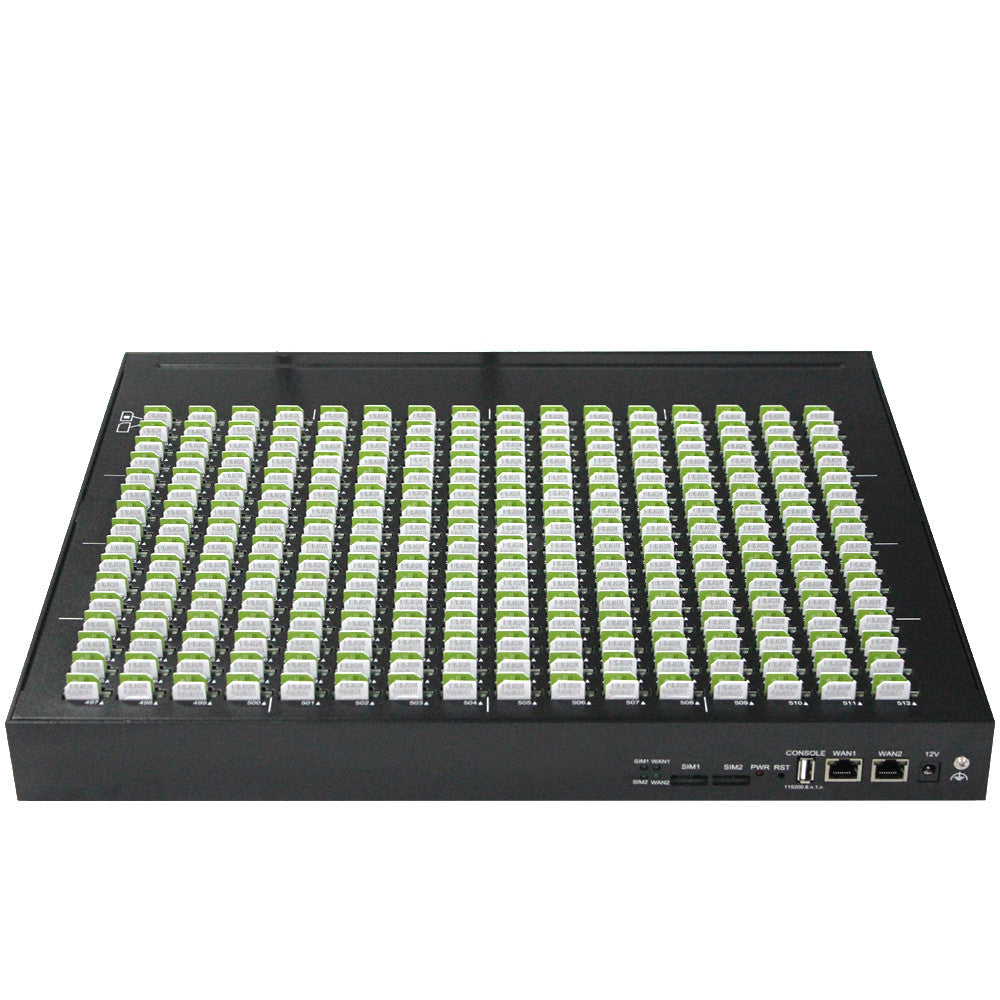

    • Wan port*1, Lan port*1,All settings set on web
    • Handle 128/256/512 SIM cards per SIMBank
    • Central management and secure storage of all SIM cards
    • Control and Supervision of your SIMs from your office
    • Allow you to choose the best GSM operators price plan
    • Immediate control of all your SIM cards from your office·
    • Easy and powerful web based management, Easy to configure convenience any time!
    TALK TO AN EXPERT

    What’s Included in the Box

    Package Contents
    • Ejoin SIMBANK 512 Main Unit
    • Ethernet Cable
    • USB Cable
    • AC/DC Adapter (Input Voltage 110-240V)
    • Rack Connector
    Dimensions
    • Net Weight: 3.0kg
    • Gross Weight:4kg
    • Device Dimension: 45x40x5cm
    • Package Dimension:53x33x13cm
